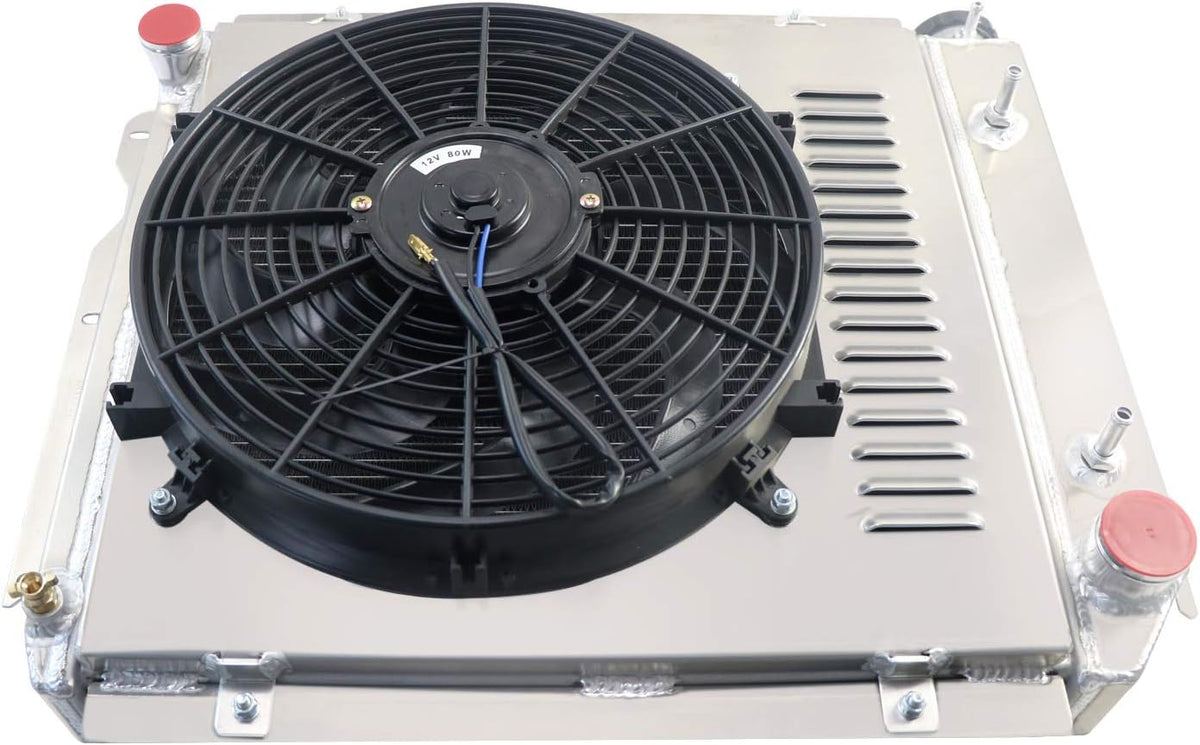

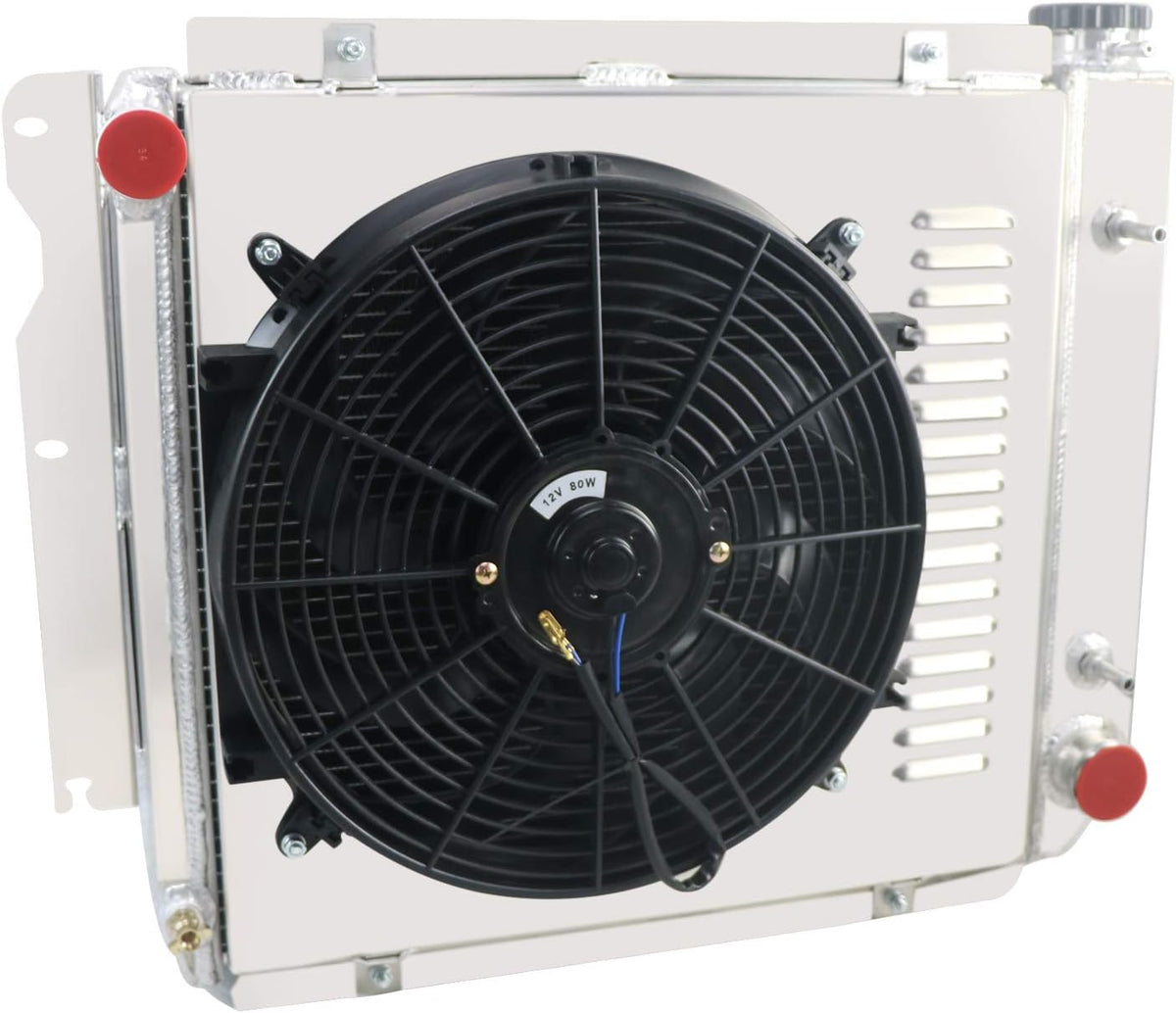

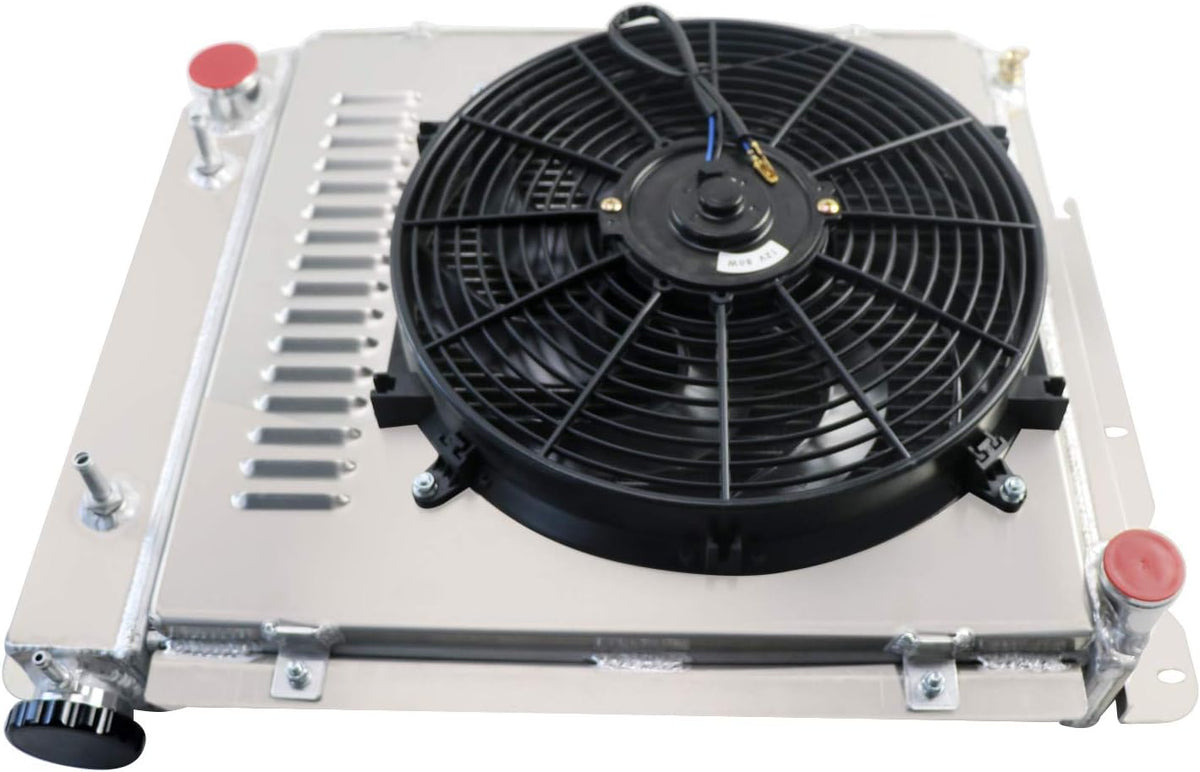

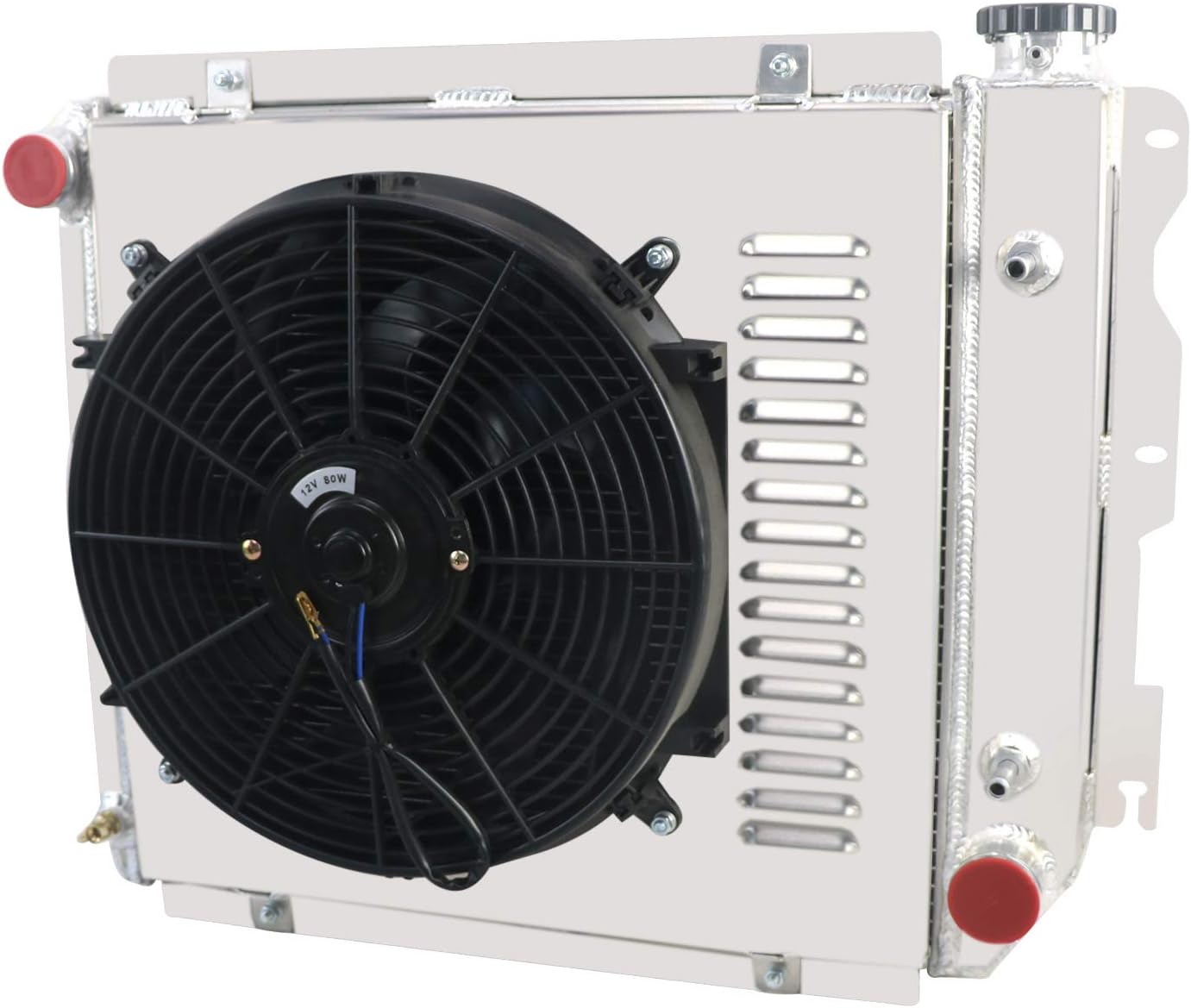

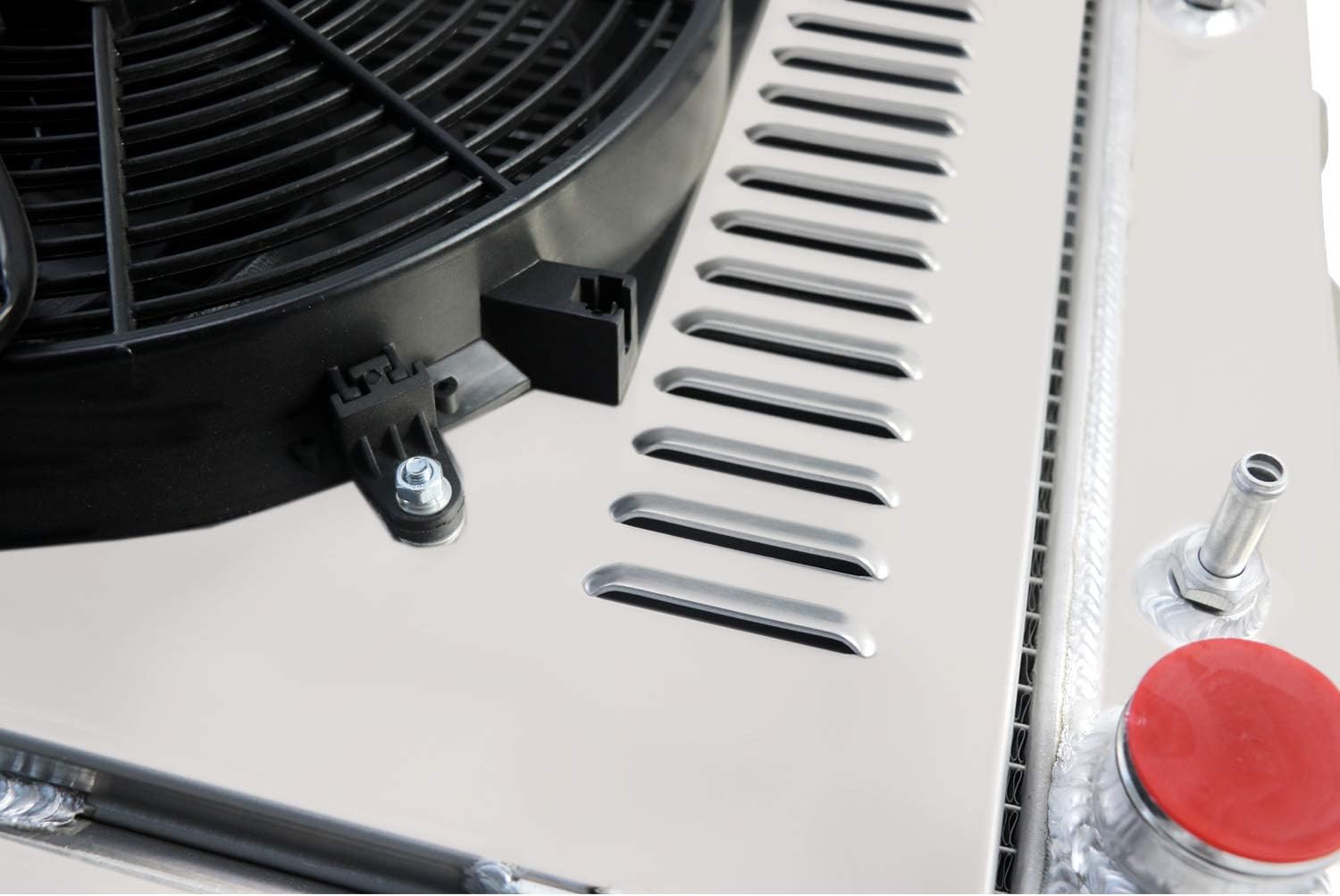

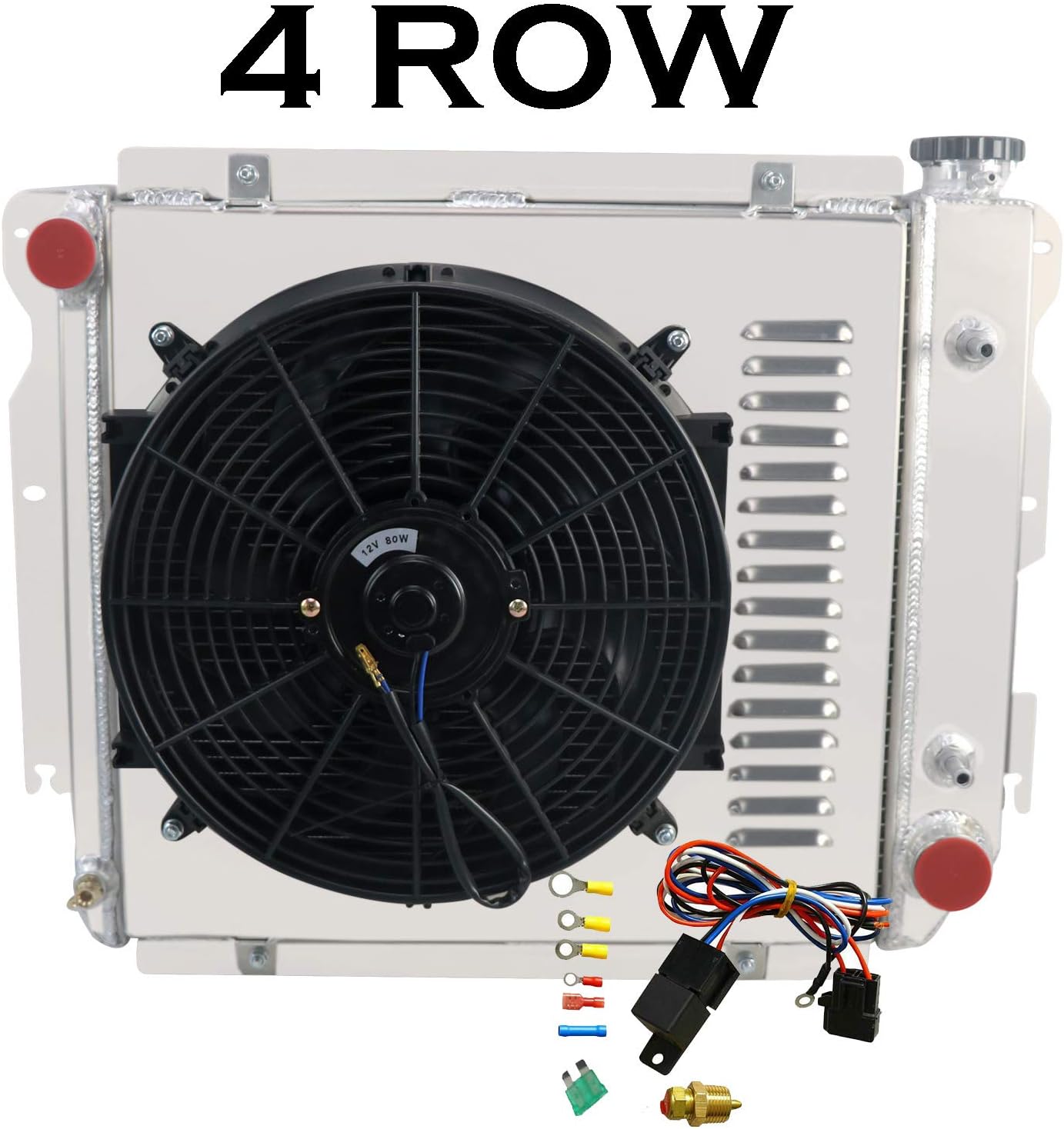

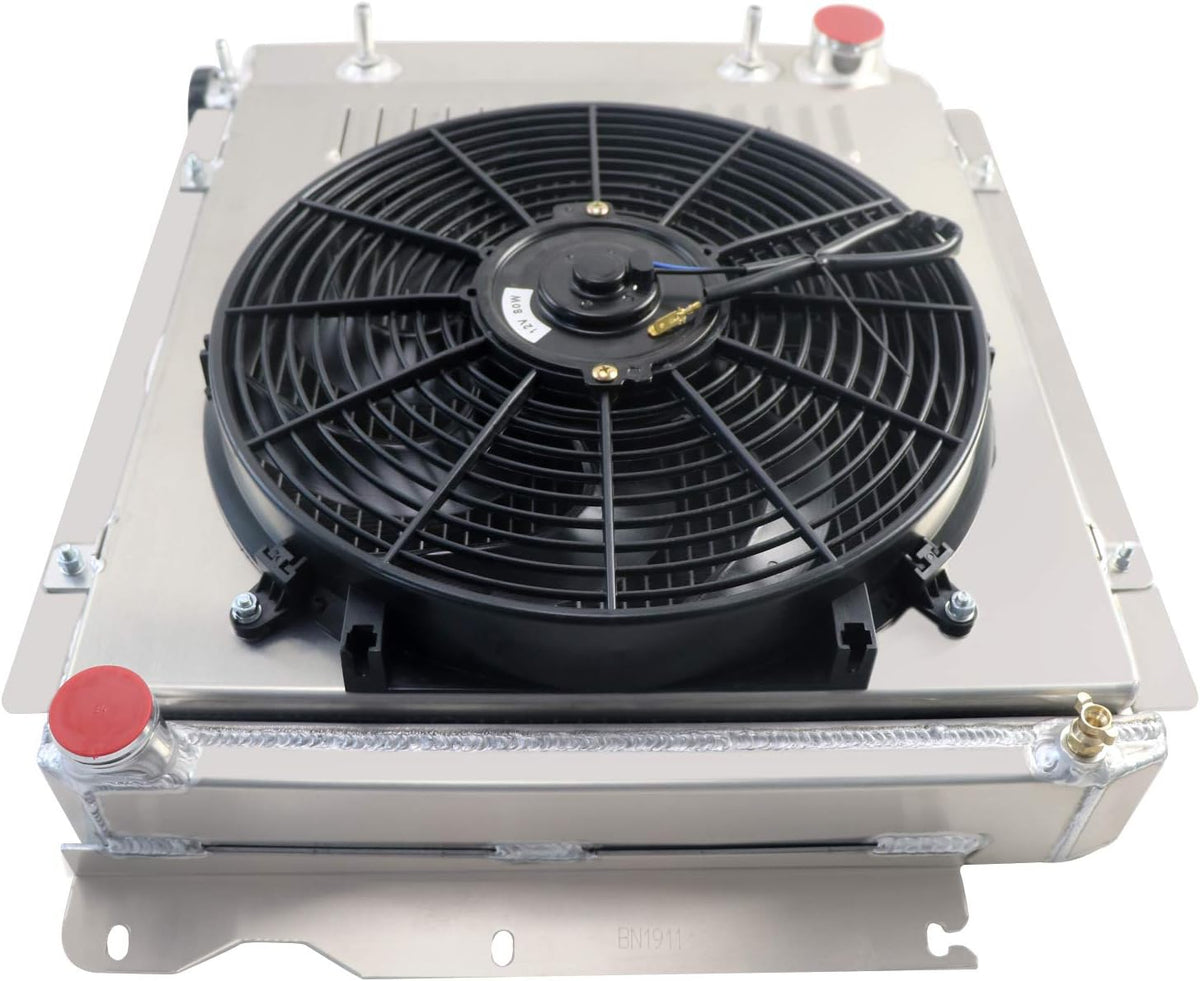

4 Row All Aluminum Radiator with 16" Fan Shroud and Thermostat L360

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND ONE 16" FAN + THERMOSTAT KITS! Radiator Size: Row: 4 Row Core Material: Full Aluminium Radiator Cap: included Core and Tank: All Aluminum Core Size: 17-1/2" H x 18-1/4" W Overall Size: 18-1/4" H x 22-1/4" W Upper inlet: 1-1/2" located on driver side. Lower outlet: 1-3/4" located on passenger side. Auto trans cooler: yes OEM mount system Interchange Part Number: CC8102,EC8102,MC8102,DPI8102 Transmission: Automatic and Manual. Vehicle Fitment For Jeep Wrangler TJ YJ V8 Conversion 1987-2002 For Chevy GM Engine 87-06 / Jeep Wranglers TJ YJ 87-02 For Jeep Wrangler YJ/TJ 87-02/ Chevy GM V8 Engine 87-95 Notice: will not work for original L4 and L6 Engine !!! FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 16.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.
